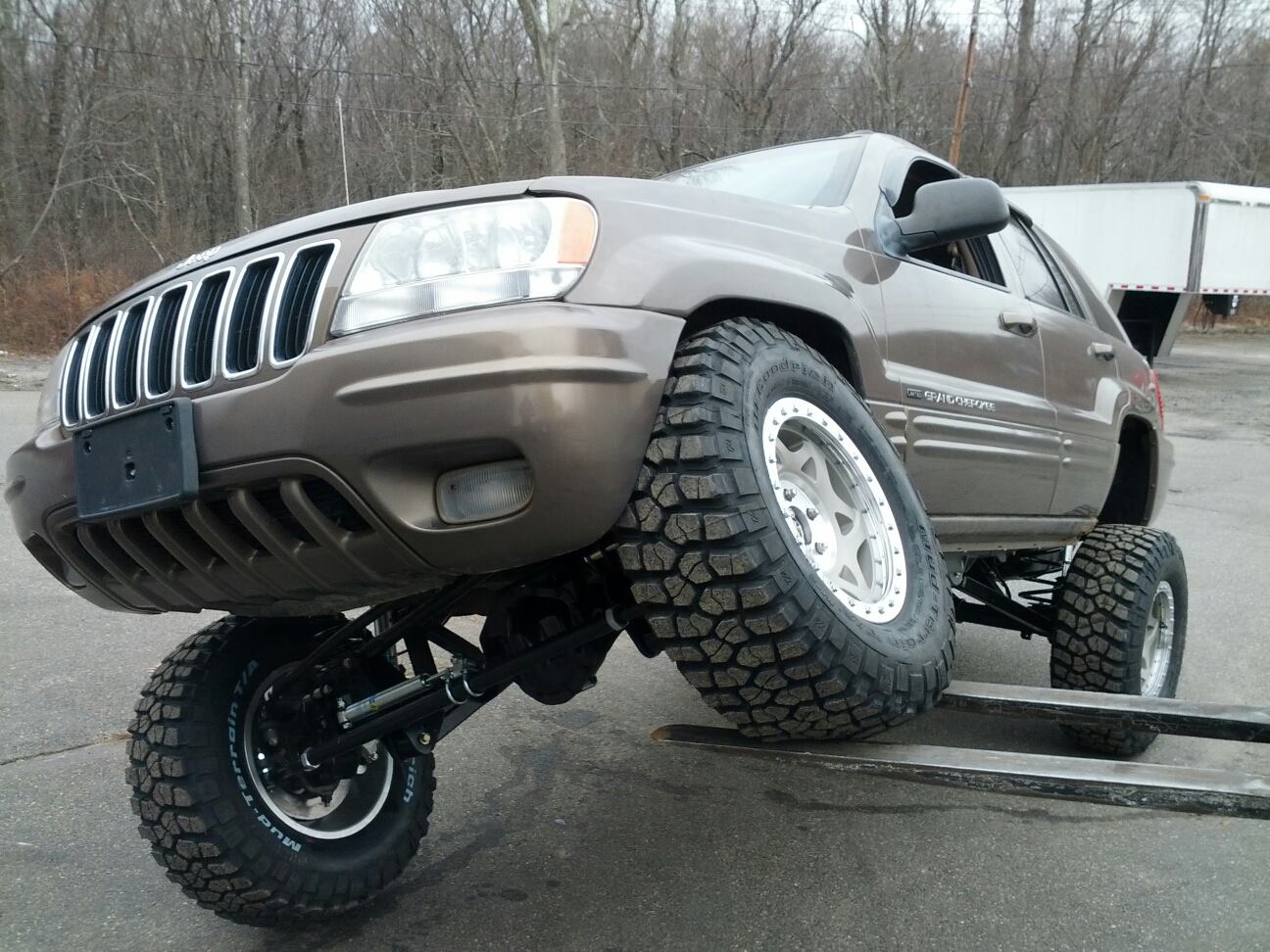

Jeep Grand Cherokee Long Arm Upgrade Kit 1999-2004,WJ

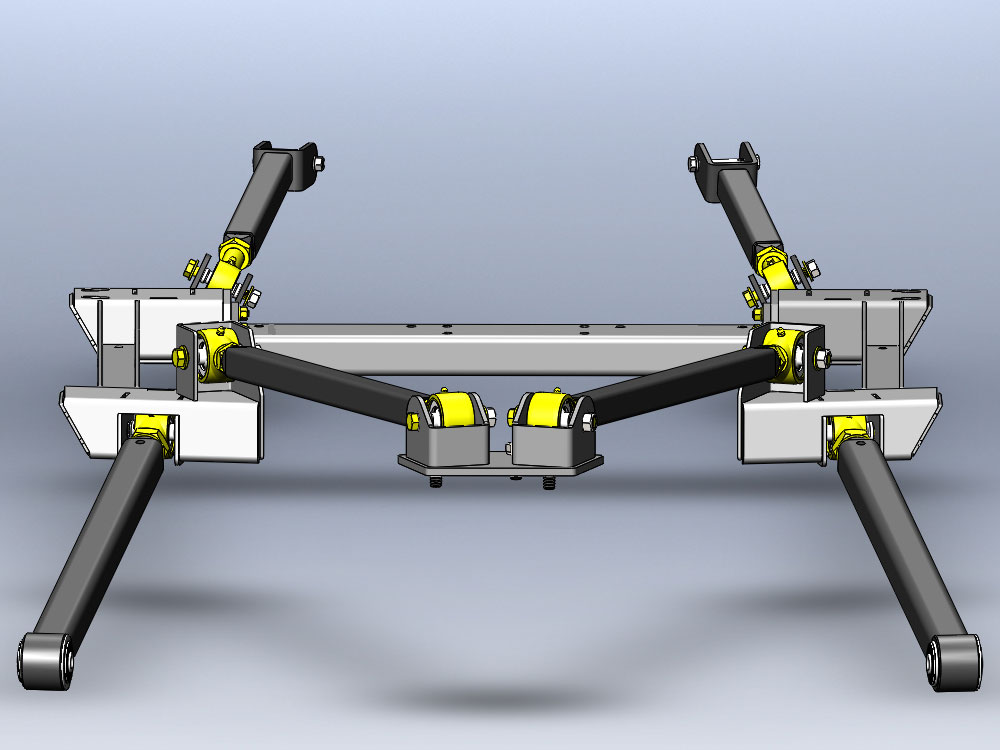

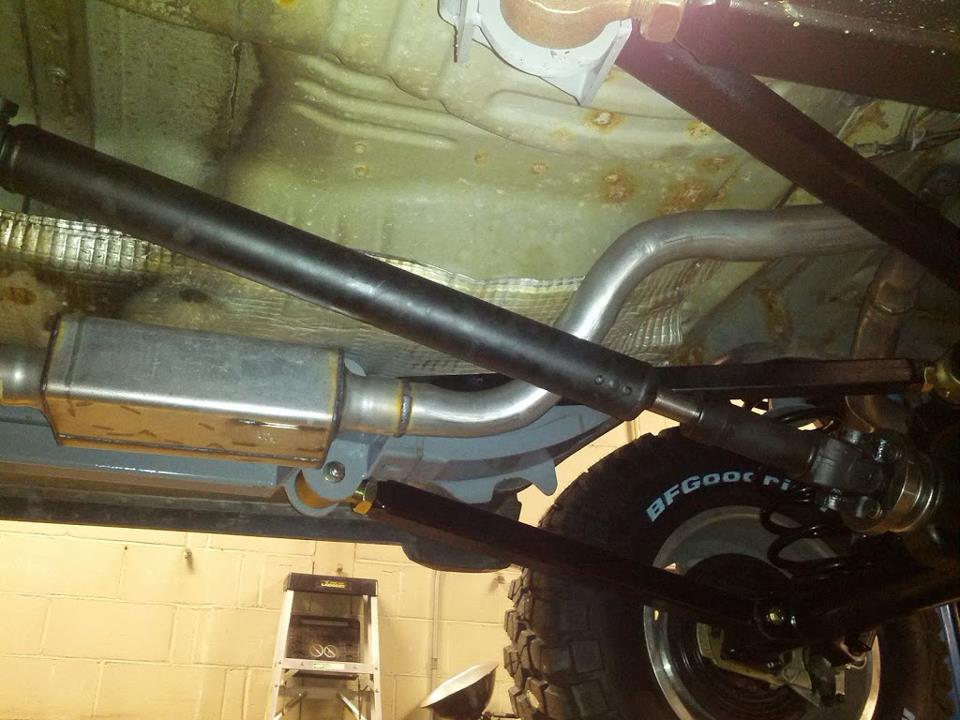

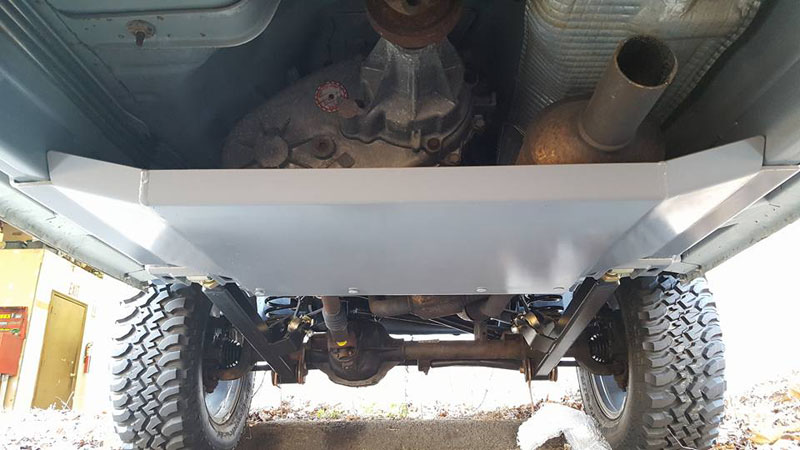

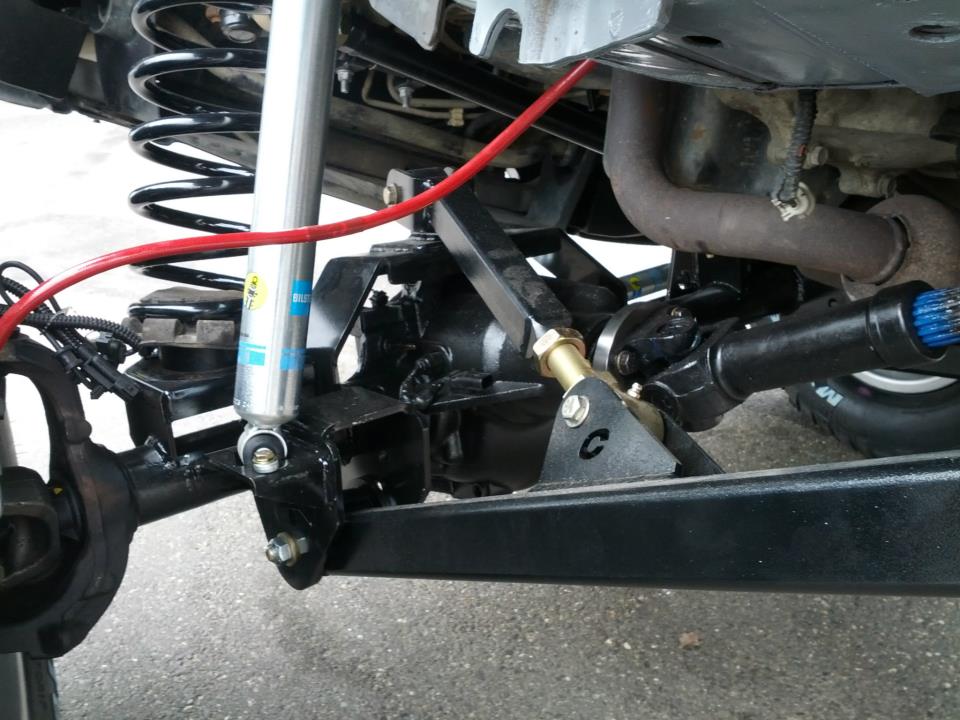

Clayton Off Road Inc. long arm upgrade kits are perfect for anyone who has a lifted Jeep with 4-8 inches of lift and is looking for that next step. What our long arm upgrade kits are intended for is anyone who wants to upgrade their current lift kit to a high quality long arm kit.  This kit comes with a 3 piece cross member, unibody frame rails, rear frame brackets, a 4 link bracket, eight ¼ lower control arm spacer plates and all 8 upper and lower adjustable control arms.  The 3 piece cross member bolts into the oem location for alignment purposes, then welds on for strength. The unibody rails weld in between the front cross member and rear frame brackets for added strength, plus making it easy to tell if your rear frame brackets are properly positioned. The center section is removable if your drivetrain needs to be serviced without having to remove any suspension components. Whether you have a short arm kit and just hate how it rides, or a competitors long arm kit that is falling apart, this kit will solve all your problems. Any long arm kit will provide better geometry by decreasing the angles on the lower arms. This greatly helps with ride quality. The length of the lower arms, also helps with flex and climbing ability off road. Where our kits rises above the rest is in the attention to details. At the frame ends we use Currie Johnny Joints which provide the flex everyone is looking for. Currie Narrow Johnny Joints offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint. Another advantages between a johnny joint and a heim joint are in the actual components they are built from. A heim joint has a metal spherical ball, usually a teflon sleave, and is encased in metal housing. This provides little if any shock absorption. A johnny joint is similar however that metal spherical ball is encased in a high density "tough 88" urethane that allows for some give. At the axle end we use a Clevite mechanically bonded bushing which is pressed into a custom machined sleeve. These are far superior to any easily pressed in poly bushing. We use the maintenance free bushing on the axle end because it is going to see more mud, water and rock abuse and its encased in a thicker housing. The Johnny joint is more protected from the elements at the frame end, providing you a longer time period between greasing or changing out bushings. Between the improved geometry, quality johnny joints and clevite bushings, along with our lifetime guaranteed control arms, this is the best and last lift kit you will ever have to purchase.

Recommended lift height range 4" to 8" of lift.

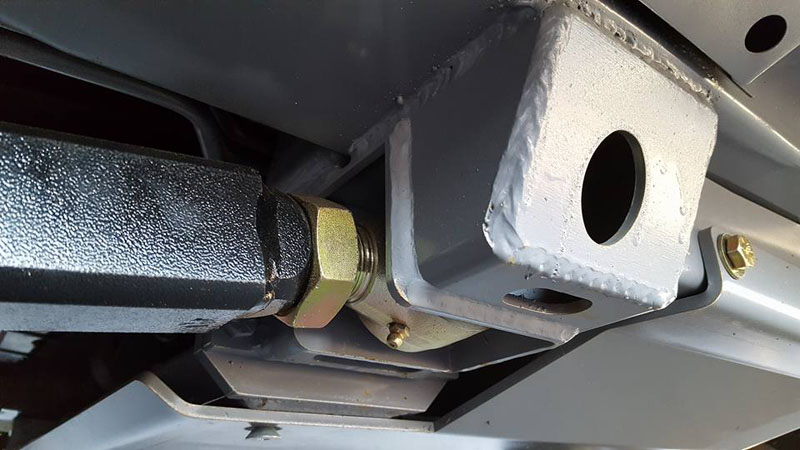

NEW - Now featuring our updated pocket style control arm mounts. Now even stronger while providing a smoother transition from the front control arms to the rear.
