Jeep Cherokee 6.5" Long Arm Lift Kit W/Rear Coil Conversion (1984-2001, XJ)
Available
5,335.90
or
$1,333.97 with
Kit Includes:
Recommended Products
Description
This specific 6.5 inch Cherokee XJ lift kit was designed to run 33 inches tires with some fender trimming due to the extreme flex this kit produces. Kit includes, a front 3 piece cross member, all 8 adjustable control arms with hardware, front and rear brake lines, front and rear coil springs, front adjustable trackbar and drop bracket, drop pitman arm, front sway bar disconnects, complete 3.0" high clearance rear axle bracket kit, 1 piece weld in cross member, ¼ flat skid plate, 2 skid plate rails, 1 upper shock mount 2 upper coil bucket brackets.
Product Features:
- 8 Fully Adjustable Control Arms
- HD Adjustable Track Bar
- Trackbar Drop Bracket
- Drop Pitman Arm
- 1/4 Flat Skid
- High Clearance Rear Axle Bracket Kit
- Triangulated 4-Link Axle Truss
- Lifetime Warranty*
- MADE IN THE USA!
NOTES:

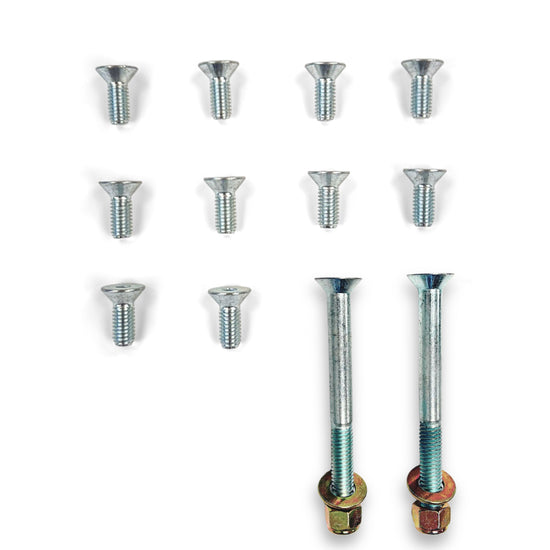

- You will need to drill and tap included for the 1" hardware to install this skid plate.
- You will need to fully drill through the two holes on the Rear Coil Conversion Crossmember for the two 4" bolts to pass through and use the included nuts.
- Shocks are optional and we recommend the Bilstein 5100s.
- Welding and cutting is required to install this lift kit.
- Custom exhaust is required.
- Moving the e-brake bracket maybe necessary on certain models/years.
- A SYE kit and CV style driveshaft is required.
Instructions
Product Breakdown
Packaging
Package 1
- 27x7 x5 in
- Weight: 12 lb
Package 2
- 41x11x5 in
- Weight: 44 lb
Package 3
- 41x8 x5 in
- Weight: 43 lb
Package 4
- 41x8 x5 in
- Weight: 24 lb
Package 5
- 24x12x6 in
- Weight: 31 lb
Package 6
- 24x12x6 in
- Weight: 27 lb
Package 7
- 32x8 x8 in
- Weight: 21 lb
Package 8
- 23x14x8 in
- Weight: 22 lb
Package 9
- 30x8 x8 in
- Weight: 23 lb
Package 10
- 28x28x1 in
- Weight: 46 lb
Package 11
- 24x6 x6 in
- Weight: 32 lb
Package 12
- 36x4 x4 in
- Weight: 14 lb
Package 13
- 24x12x6 in
- Weight: 43 lb
Videos
