JEEP GLADIATOR & WRANGLER | FOX 2.0 BUMP STOP
Recommended Products
Description

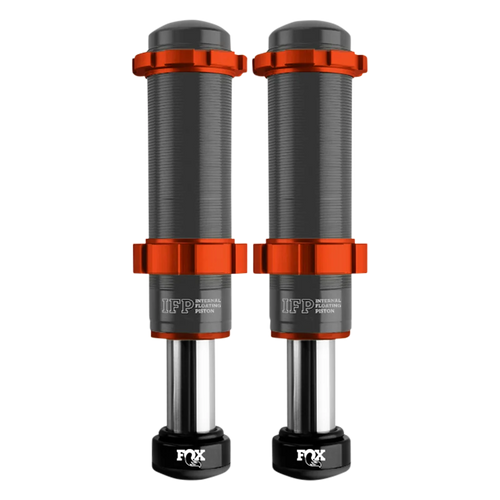

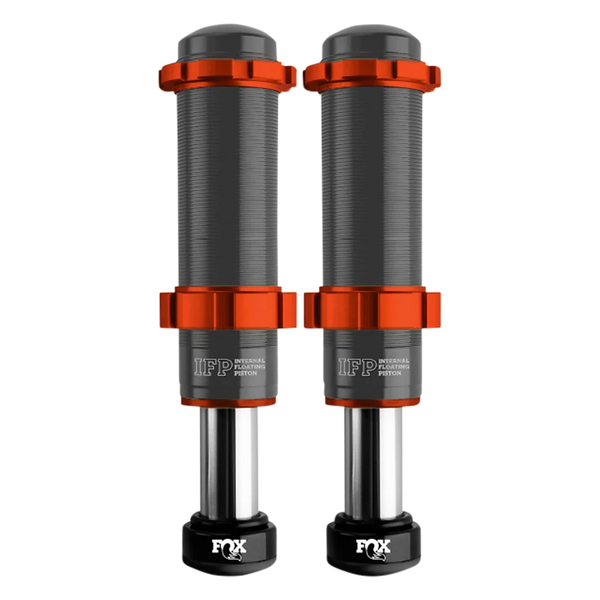

Inspired by it's off-road racing predecessors, the new Factory Race Series bump stop combines race proven technology with new, cutting-edge features to provide increased damping performance and bottom out control in the last few inches of suspension travel.
The threaded body allows you to adjust the mounting height to fine-tune when the bump stop engages during up travel, preventing harsh bottom outs. An Internal Floating Piston (IFP) in the shaft separates the oil and nitrogen to prevent cavitation and bucking while the negative coil spring softens initial impacts and harsh top outs. The integrated FOX AIR VALVE (FAV) is located at the bottom of the shaft for easy access and is protected by the replaceable strike pad.
Factory Series bump stops allow you to use every inch of suspension travel without harsh bottoming.
Notes:
FEATURES: Modifications Required; Performance Tuned For Vehicle Specific Application; Aluminum Body Dissipates Heat Faster Than Steel; IFP Separates Oil From High-Pressure Nitrogen Gas; Black Anodized CNC Machined Aluminum Components
SERIES: Factory Race
TRAVEL: 1.85"
FRONT LIFT HEIGHT: ALL
BODY: Threaded, impact extruded, black anodized, CNC machined 6061-T6 billet aluminum
COMPONENTS: Black anodized, CNC machined 6061-T6 billet aluminum
SHAFT: Hard chrome plated 1-1/4" 4130 steel with Internal Floating Piston (IFP) for increased damping performance
PISTON: Heavy-duty powdered steel
VALVING: Tunable, velocity sensitive deburred valve shims
SEALS: Redundant sealing pack system, main seal, wiper seal, scraper seal
EXTENDED LENGTH: 10.04
COMPRESSED LENGTH: 8.18
Instructions
Packaging
- 34x19x10 in
- Weight: 33 lb
