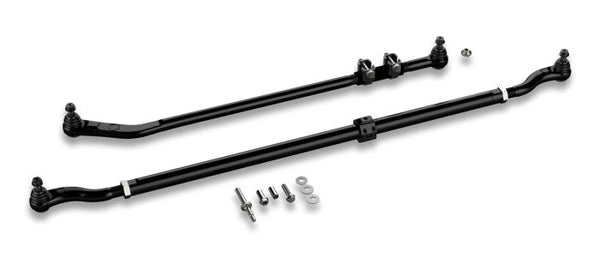

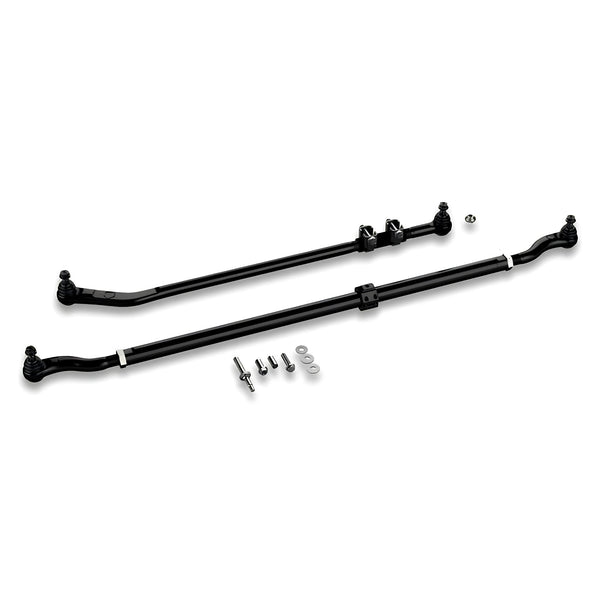

JK: HD Forged Drag Link Kit & HD Chromoly Tie Rod Kit

The TeraFlex JK: HD Forged Drag Link Kit & HD Chromoly Tie Rod Kit withstands extreme conditions and abuse that typically causes factory steering components to bend and fail on lifted JK Wrangler/Unlimited models.

• HD Forged Drag Link Kit - 50% stiffer than factory drag link to help eliminate front end shimmy and other alignment issues
  • 1.25" O.D. fully forged drag link eliminates excess movement during hard steering maneuvers
  • Utilizes oversized DOM factory-style adjusting collar and pinch clamp for simple adjustments
  • Tie rod joint incorporates same features found in TeraFlex Ball Joints, including 4140 chromoly ball/stud and 1045 carbon steel housing
  • Adjustable joint preload tension to ensures proper long-term durability
  • Joint is pressed into rod end housing and secured w/ snap ring
  • Provides clearance for factory 17" wheels
• HD Chromoly Tie Rod Kit
  • HD 1-5/8" O.D. 4140 heat treated chromoly steel
  • More than 200% stronger than factory tie rod
  • Forged tie rod housing designed specifically for JK Wrangler/Unlimited
  • Tie rod end joint incorporates same features found in TeraFlex ball joints, including 4140 chromoly ball/stud and 1045 carbon steel housing
  • Features adjustable rod end preload tension to ensure long-term durability
  • The joint is pressed into the rod end housing and secured w/ a snap ring - Tie rod end joint rotation is limited to 14 degrees of movement to minimize tie rod roll
  • Provides clearance for factory 17" wheels
  • Steering Stabilizer Relocation Mount Bracket Kit - HD Tie Rod (# 1123160)
  • Fits heavy-duty 1-5/8" tie rod - 6061-T6 aluminum clamp and forged 10.9 grade stud
  • Moves steering stabilizer up nearly 2.5" to help reduce damage to the stabilizer shaft or body
  • Repositions stabilizer to reduce tie rod roll" associated w/ stabilizer misalignment
• Fitment info =
  • JK Wrangler (2-door)
  • JK Wrangler Unlimited (4-door)
  • 0-3" Lift
  • Dana 30 front axle
  • Dana 44 front axle
  • height=6, installation time=1.5
  • REQUIRES aftermarket wheels w/ 4.75'' backspacing or less - or 1.25'' Wheel Offset Adapter Kit for stock wheels - NOT INCLUDED See Recommended Items

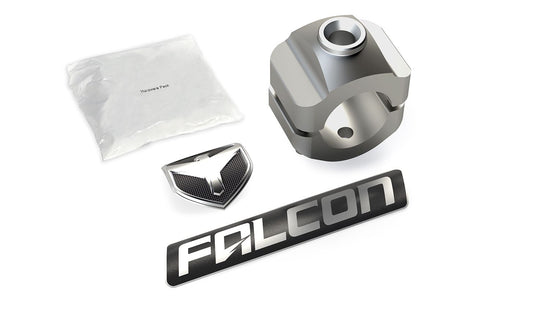

  • The included Steering Stabilizer Relocation Bracket is NOT compatible w/ Falcon Nexus EF Steering Stabilizers ''" REQUIRES Falcon 1-5/8'' Steering Stabilizer Tie Rod Clamp Kit (# 99-01-01-158).
