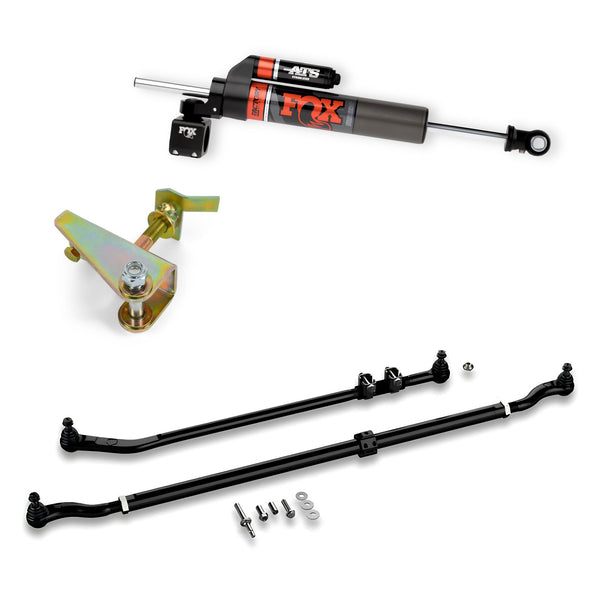

JK TeraFlex & Fox Steering PACKAGE

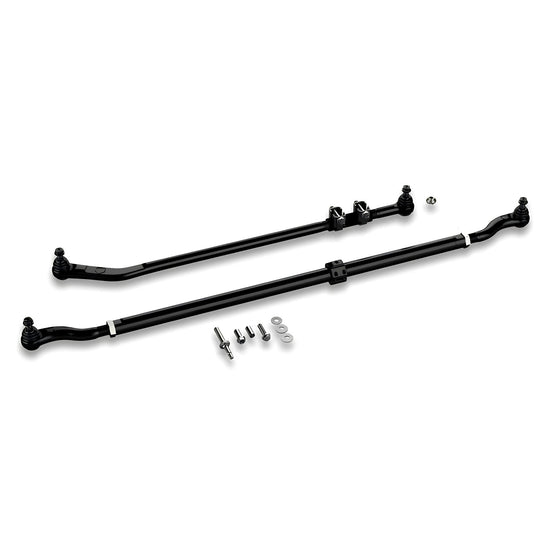

The TeraFlex JK: HD Forged Drag Link Kit and HD Chromoly Tie Rod Kit withstands extreme conditions and abuse that typically causes factory steering components to bend and fail on all JL Wrangler/Unlimited and JT Gladiator models. Paired with a FOX 2.0 ATS Steering Stabilizer utilizes an Adjustable Through Shaft (ATS) architecture that eliminates shaft fluid displacement throughout the stabilizer’s entire travel in both directions. Utilizing the Clayton Off Road Steering Stabilizer Relocation Bracket you can raise your stabilizer above your tie rod eliminating the possibility of hitting it on rocks or other obstacles.

• HD Forged Drag Link Kit - 50% stiffer than factory drag link to help eliminate front end shimmy and other alignment issues
  • 1.25" O.D. fully forged drag link eliminates excess movement during hard steering maneuvers
  • Utilizes oversized DOM factory-style adjusting collar and pinch clamp for simple adjustments
  • Tie rod joint incorporates same features found in TeraFlex Ball Joints, including 4140 chromoly ball/stud and 1045 carbon steel housing
  • Adjustable joint preload tension to ensures proper long-term durability
  • Joint is pressed into rod end housing and secured w/ snap ring
  • Provides clearance for factory 17" wheels
• HD Chromoly Tie Rod Kit
  • HD 1-5/8" O.D. 4140 heat treated chromoly steel
  • More than 200% stronger than factory tie rod
  • Forged tie rod housing designed specifically for JK Wrangler/Unlimited
  • Tie rod end joint incorporates same features found in TeraFlex ball joints, including 4140 chromoly ball/stud and 1045 carbon steel housing
  • Features adjustable rod end preload tension to ensure long-term durability
  • The joint is pressed into the rod end housing and secured w/ a snap ring - Tie rod end joint rotation is limited to 14 degrees of movement to minimize tie rod roll
  • Provides clearance for factory 17" wheels
  • Steering Stabilizer Relocation Mount Bracket Kit - HD Tie Rod (# 1123160)
  • Fits heavy-duty 1-5/8" tie rod - 6061-T6 aluminum clamp and forged 10.9 grade stud
  • Moves steering stabilizer up nearly 2.5" to help reduce damage to the stabilizer shaft or body
  • Repositions stabilizer to reduce tie rod roll" associated w/ stabilizer misalignment
• Fitment info =
  • JK Wrangler (2-door)
  • JK Wrangler Unlimited (4-door)
  • 0-3" Lift
  • Dana 30 front axle
  • Dana 44 front axle
  • height=6, installation time=1.5
  • REQUIRES aftermarket wheels w/ 4.75'' backspacing or less - or 1.25'' Wheel Offset Adapter Kit for stock wheels - NOT INCLUDED See Recommended Items
  • The included Steering Stabilizer Relocation Bracket is NOT compatible w/ Falcon Nexus EF Steering Stabilizers ''" REQUIRES Falcon 1-5/8'' Steering Stabilizer Tie Rod Clamp Kit (# 99-01-01-158).
